Topic: Replacement for FST290 transistor needed

[Phil]

Hi Folks,

one of the transistors in my instrument pod which are used for led multiplexing (TR1 and TR2) just burnt down.
And now I'm having some trouble finding a replacement.
This transistors are PNP types. sinclairc5.com says:

These transistors should have a saturation voltage of less than 0.5 volts at 100 mA collector current and 3.75 mA base current. The FST290 is a specially selected transistor to this specification.

I thought a BC557C could be applicable. But it is not - the LEDs are glowing just a bit.

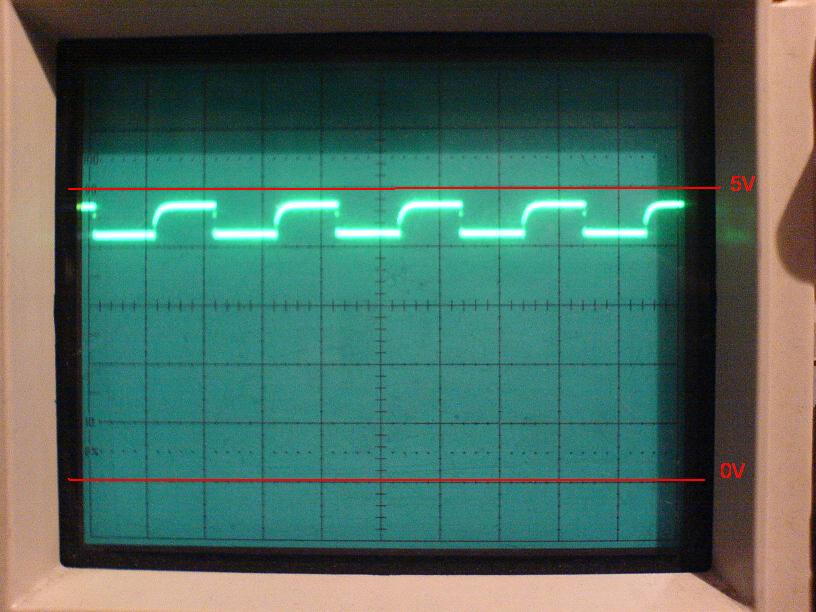

So I analyzed the signal at the base pin of the remaining 2nd FST290 which looks like this:

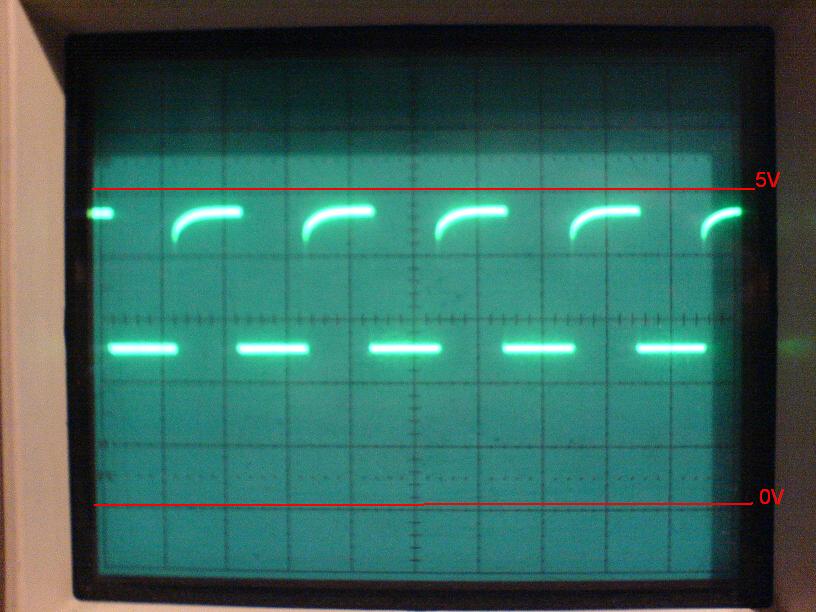

While the base pin at the BC557 looks like this:


As you can see, the base signal of the BC557 won't get down enough (and so the LEDs won't light up).
But this is also a little bit astonishing to me since I just don't understand why.

However, has anybody here ever replaced one of the FST290 transistors? What type did you use for replacement?

Thanks for advice!

-Phil

[radiomarty]

Hi Phil - replaced most items in the control box but never in the pod - hopefully Plod or Chas may be able to help on this one - good luck

[Karl]

Gotta love the Pod - I reckon even NASA would struggle with them

Must be time for someone with a bigger brain than me to design a simpler replacement that fits within the original "shell".

[PLOD11]

Just made a phone call, hope to have an answer by this evening, just had a look at one and i am sure there will be a alternative ...

[Phil]

Ahhh stupid!

The BC557 works - I only foolishly reversed it in polarity!
Guess it was just too late yesterday...

However, this is how it works:
When looking on top of the original FST290 transistor, the flat side points to the left.
If you replace one of these with a BC557 the flat side must point to the right.

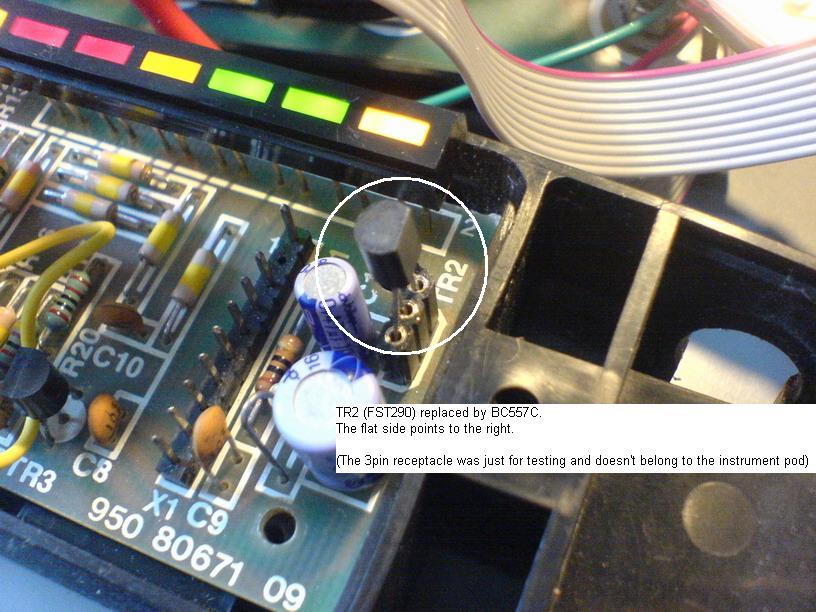

Have a look at this:


The BC557C is a very common transistor. You will get it in every electronic store. - Just in case someone has the same problem.

-Phil
